PET Printed Panels
PET Printed Panels
PET Printed wall and ceiling panels allow you to add high-quality designs, branding and photos to your acoustic treatment. The core panel substrate is our 9, 12 or 24mm PET material which is excellent for creative acoustic solutions where design is critical. Merging high-performance absorbency with a lightweight, slim profile it is the perfect panel for any space.
Get a Quote
FILES:
SCHOOL CLASSROOMS & COMMERCIAL:
Approximately a 36% coverage of the total area for most school classrooms and commercial applications including restaurants, cafes, bars, offices and meeting rooms.
The robust construction of our Premium panels also makes them ideal for demanding, high impact areas such as gymnasiums and multi-function halls
STUDIO:
placement is the key to successful recording and mixing studio acoustics. The two key areas are early reflection damping (primary sonic reflections) and corner bass frequency trapping. Please see diagram here.
HOME THEATRE:
similar requirements and placement to studios. The main difference is the sidewall panel placement which is typically further back in the room midway between the speakers and listening position.
FIXING:
May be glued using a suitable wall or ceiling adhesive, fixed with standard picture hanging products or suspended with optional suspension cable kits. Full instructions and guidelines for fixing and placement are included in all packs.
NRC:
24mm = 0.75 | + AirGap (25mm) = 0.85 | + AirGap (50mm) = 0.90
NRC = Noise reduction coefficient. A measure of a panel's overall sound reduction/absorption ranging from 0=zero to 1=100% absorption
PRINTING:

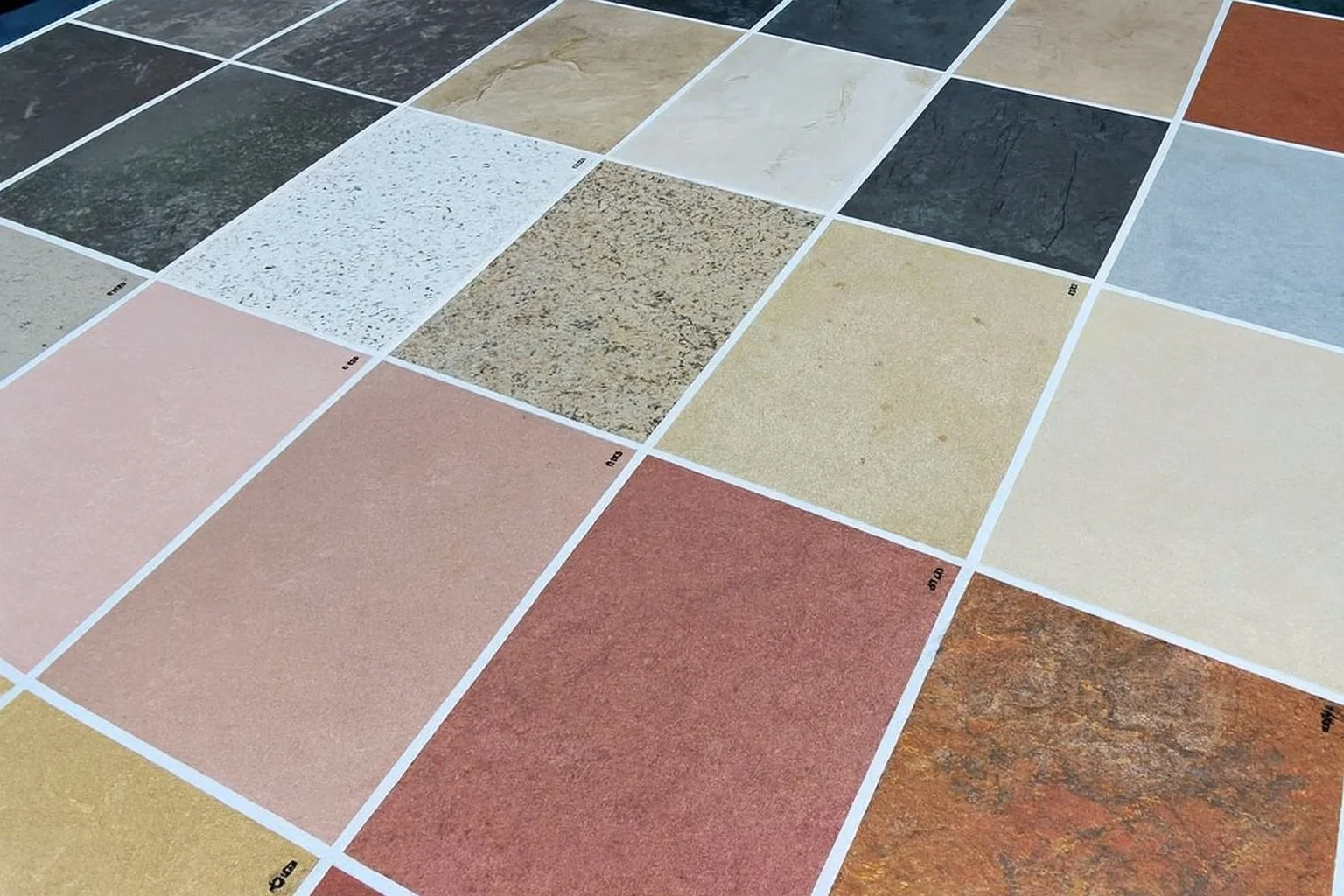

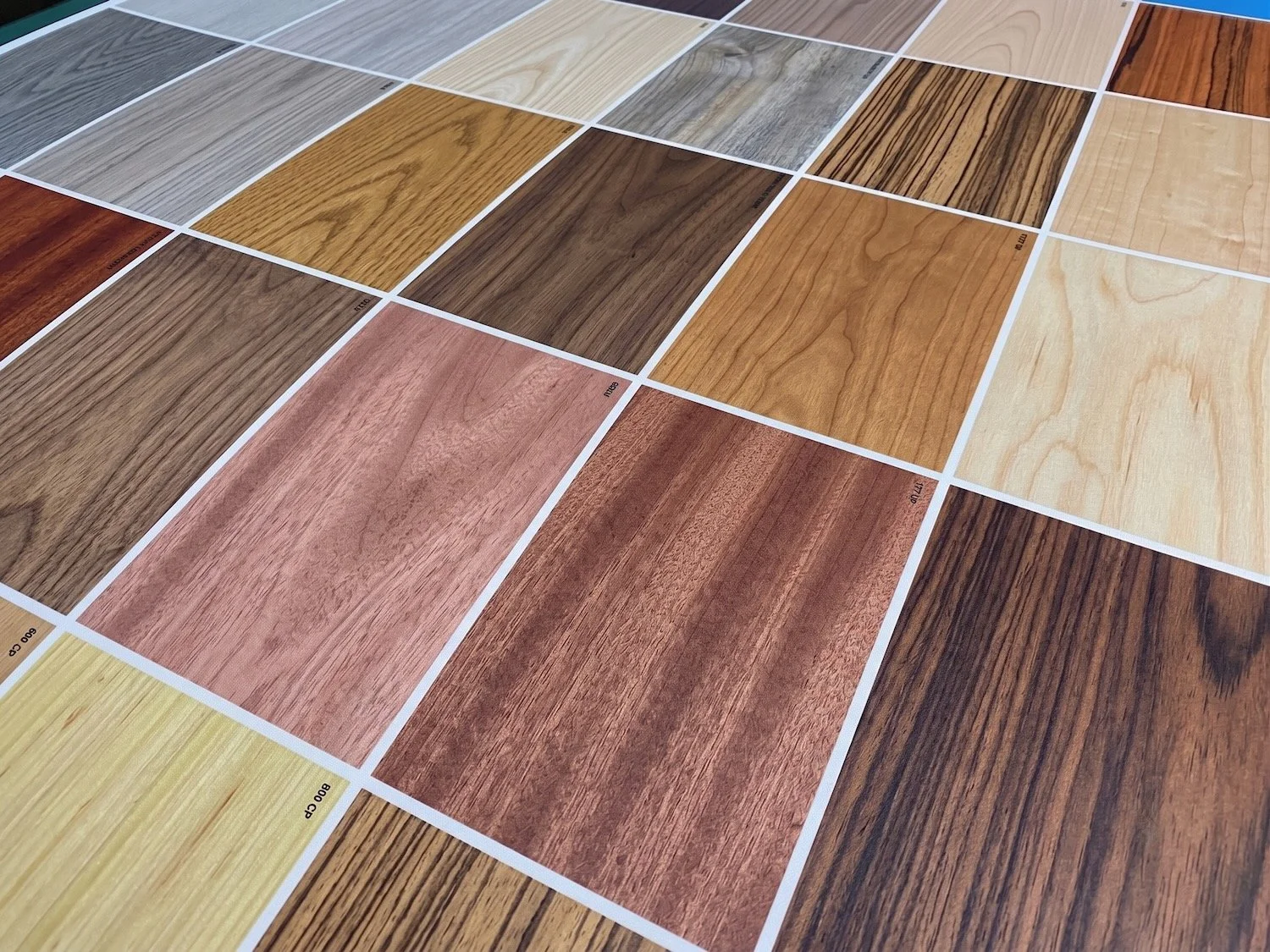

Provide us with your own high-resolution branding, images or patterns which can then be applied to the sound absorbing panel. Alternatively please enquire for our standard design library.
COMPOSITION:
9, 12 or 24mm Recycled PET Fibre. Robust, light, no irritation, eco friendly, washable, fade resistant.
DIMENSIONS:
2400 x 1200mm (+/-1mm)
or Customised
AVAILABILITY:
6-9 weeks
SUSTAINABILITY:
Premium contains a minimum of 75% recycled polyester fiber (Post consumer, from PET bottle-flake), ensuring comparatively low embodied energy. Off-cuts and manufacturing waste is re-used or recycled wherever possible. Uncontaminated panels can be recycled.
FIRE RATING:
EN13501-12007 Class B
