PET Ceiling Rafts
PET Ceiling Rafts
A cutting-edge acoustic solution designed to elevate acoustic performance while enhancing the aesthetic appeal of your space. These rafts represent a fusion of innovation and sustainability, crafted from our high-density PetFelt Fibre for both durability and refined aesthetics.
Installed with ease, our acoustic ceiling rafts come complete with adjustable cable kits and fixtures, ensuring a hassle-free setup process.
Get a Quote
FILES:
SCHOOL CLASSROOMS & COMMERCIAL:

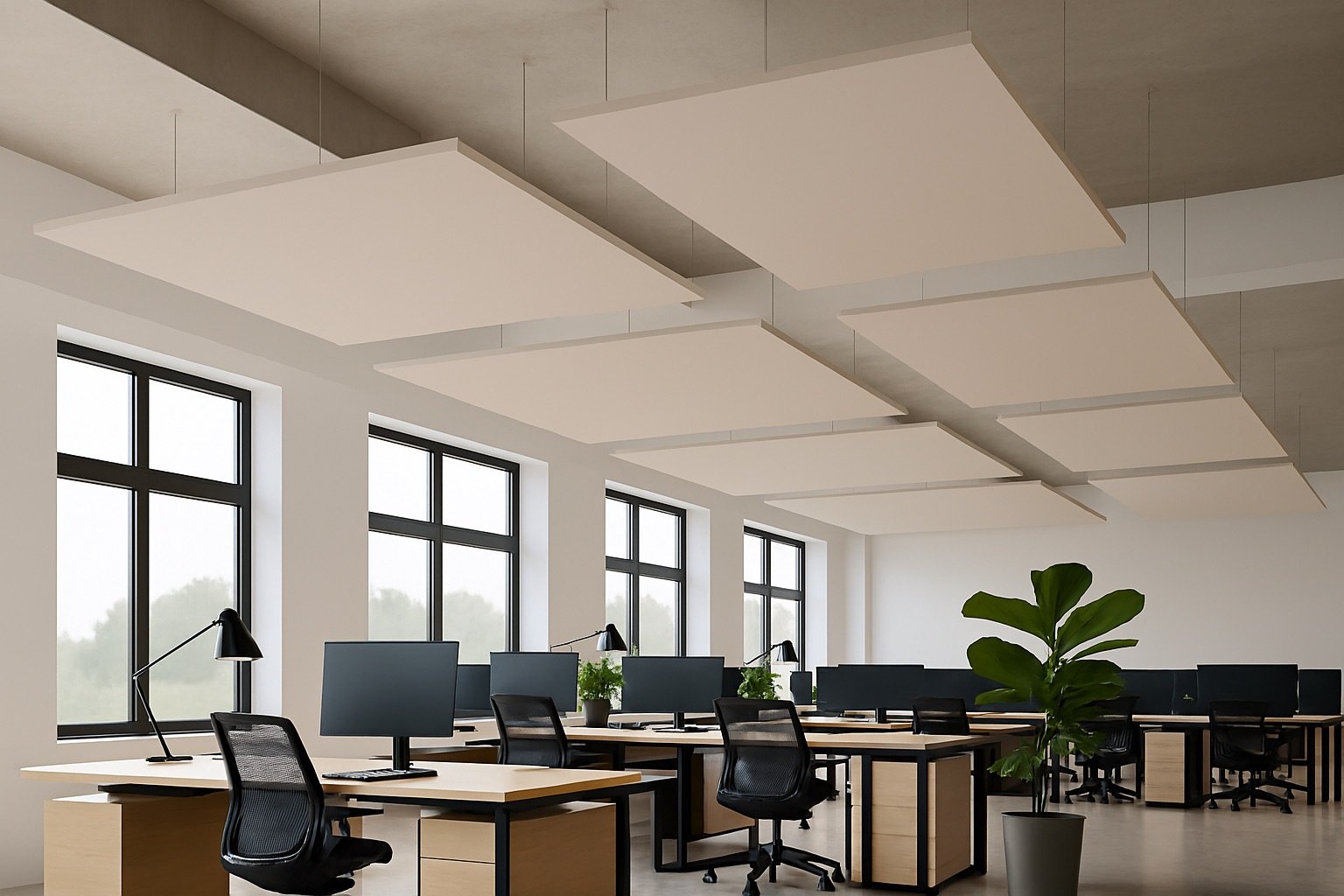

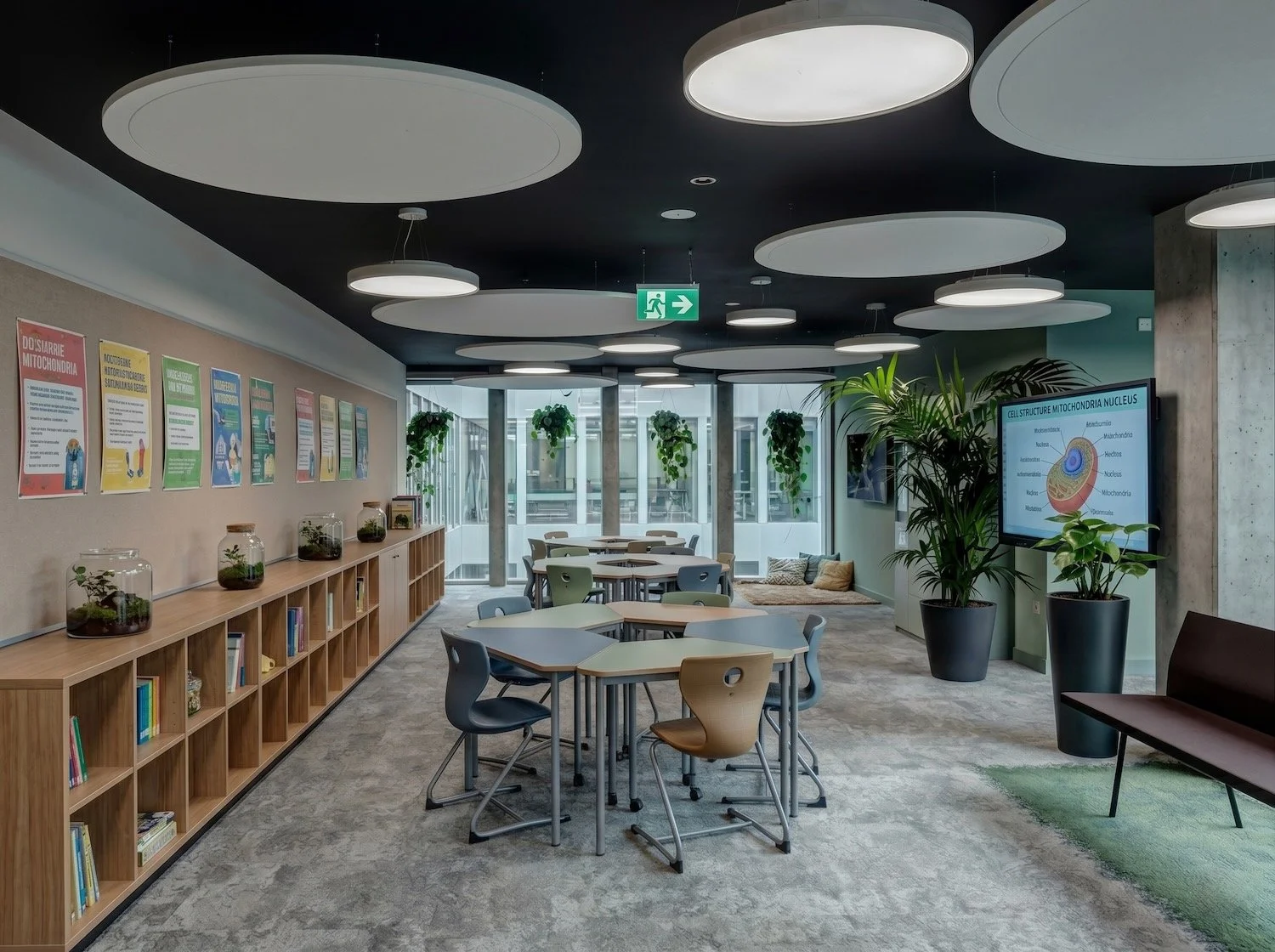

Approximately 36% of the total ceiling area for most school commercial applications including schools, restaurants, cafes, bars, offices and meeting rooms.
The robust construction of our Premium Rafts also makes them ideal for demanding, high impact areas such as gymnasiums and multi-function halls
STUDIO:
placement is the key to successful recording and mixing studio acoustics. The two key areas are early reflection damping (primary sonic reflections) and corner bass frequency trapping. Please see diagram here.
HOME THEATRE:
similar requirements and placement to studios. The main difference is the sidewall panel placement which is typically further back in the room midway between the speakers and listening position.
SUSTAINABILITY:
Premium contains a minimum of 75% recycled polyester fibre (Post-consumer, from PET bottle-flake), ensuring comparatively low embodied energy. Off-cuts and manufacturing waste are reused or recycled wherever possible. Uncontaminated panels can be recycled.
COMPOSITION:
24mm Recycled PET Fibre @ 133-200 Kgs per M3 density. Light, no irritation, eco friendly, washable, fade-resistant, fireproof.
DIMENSIONS:
w:600mm h:1200mm (+/- 1mm)
w:1200mm h:1200mm (+/- 1mm)
d:24mm
(Customisation available with MOQ)
COLOURS:
Inventory in White and Black
60 colours available (MOQ)
ASSEMBLY:

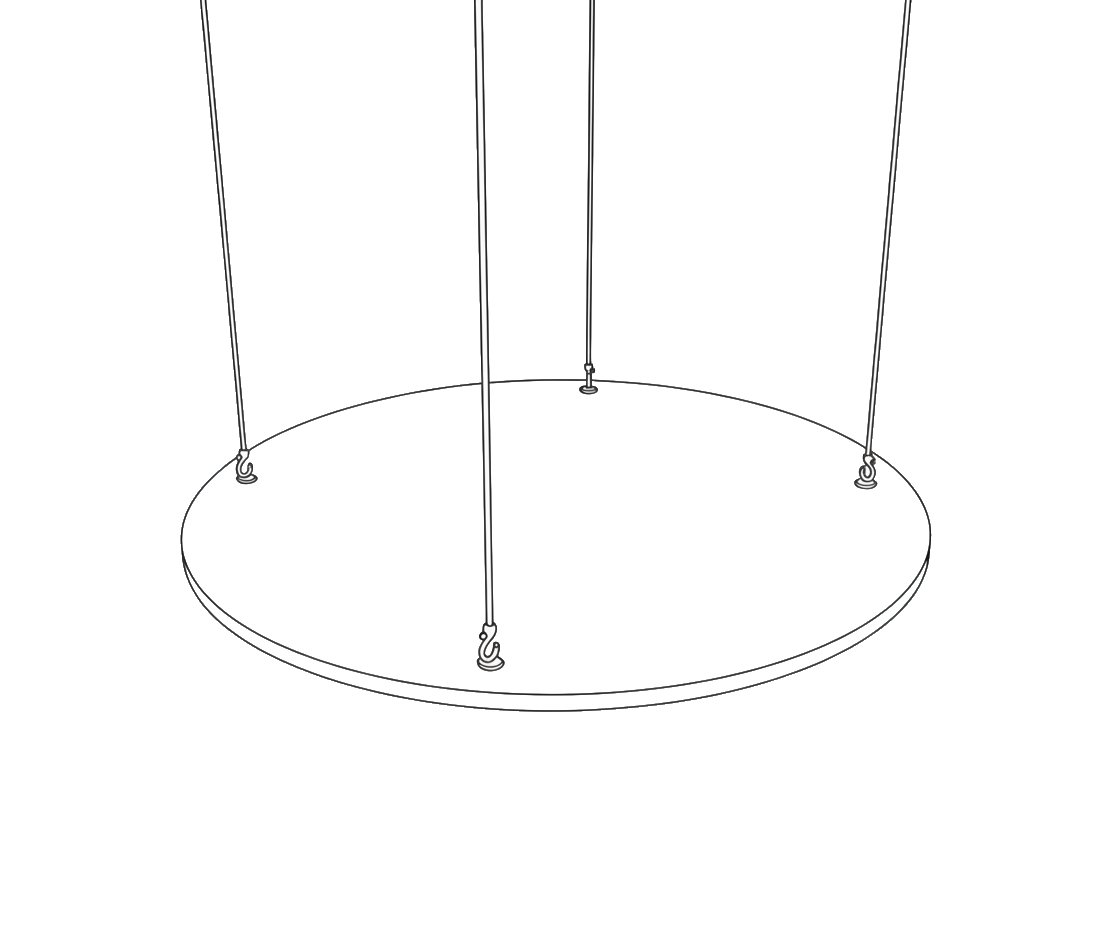

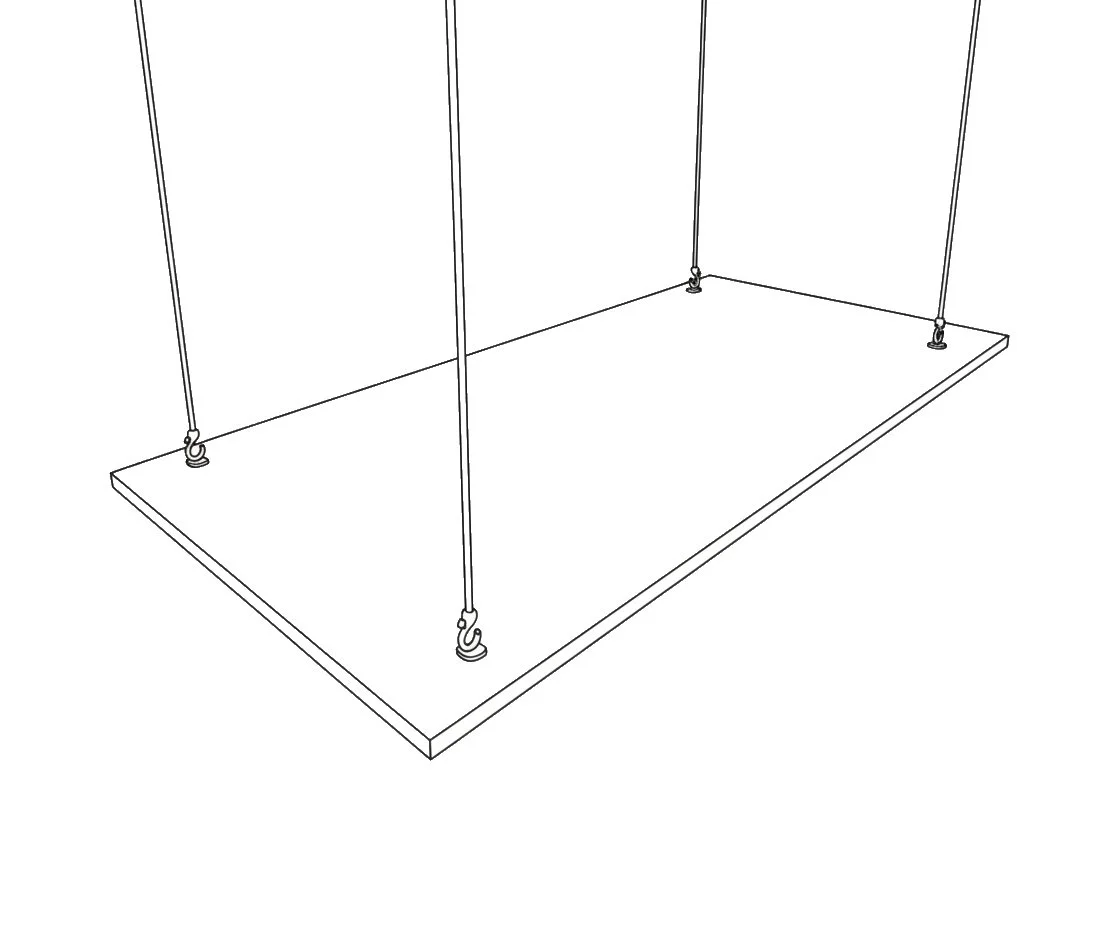

Rafts are suspended by use of the included cable kits (5-150cm drop capacity). A full installation guide is included with each and every sale.
PERFORMANCE:
1200x1200x24mm
AirGap (200mm) = 1.6
AirGap (400mm) = 1.6
AirGap (800mm) = 1.7
Sabin is a unit of sound absorption
One square metre of 100% sound absorbing material has a value of 1 metric sabin.
FIRE RATING:
EN13501-12007 Class B
