PetFelt WAVE PANELS
PetFelt WAVE PANELS
An innovative acoustic solution designed for diverse commercial environments. Crafted from eco-conscious PET Felt, this high-density, porous material excels at noise absorption. What sets WAVE apart is its distinctive undulating pattern, greatly enhancing any setting.

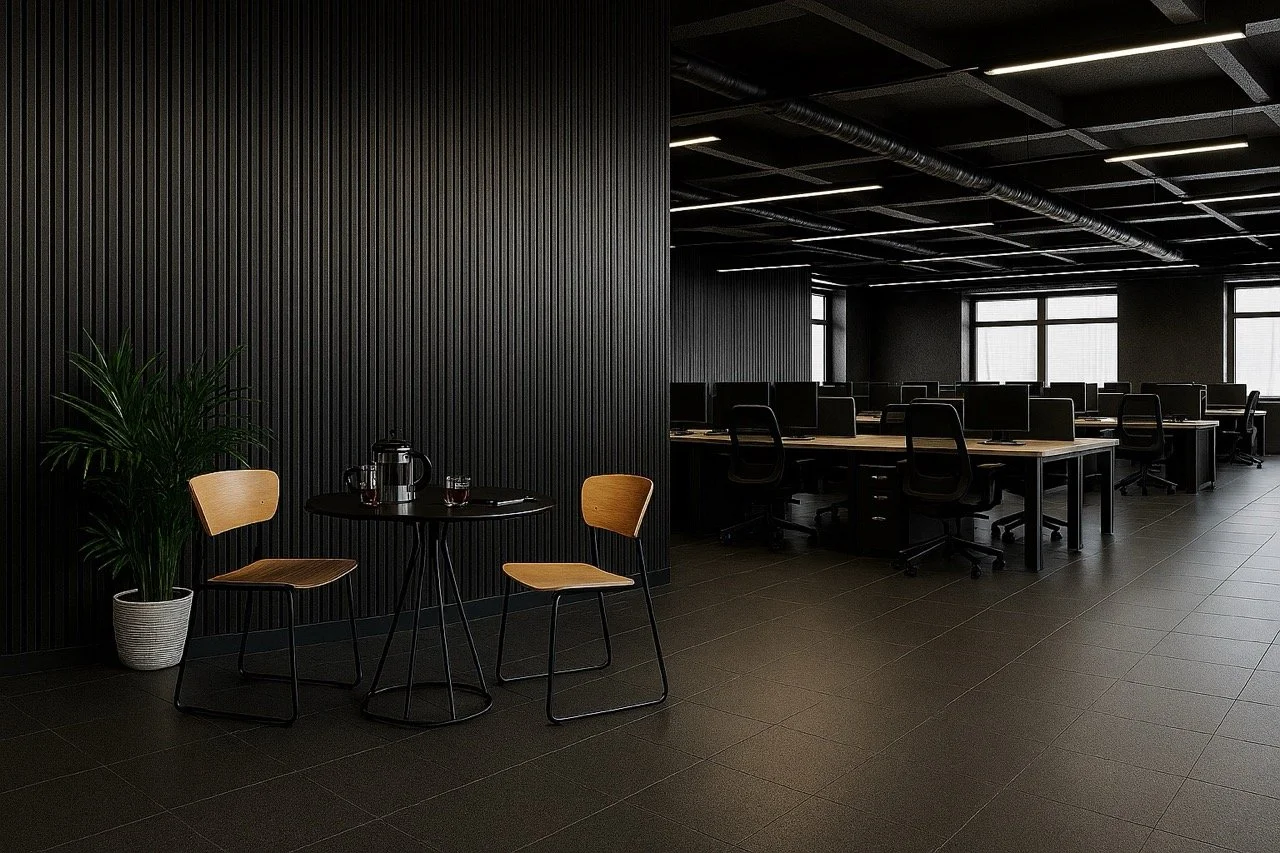

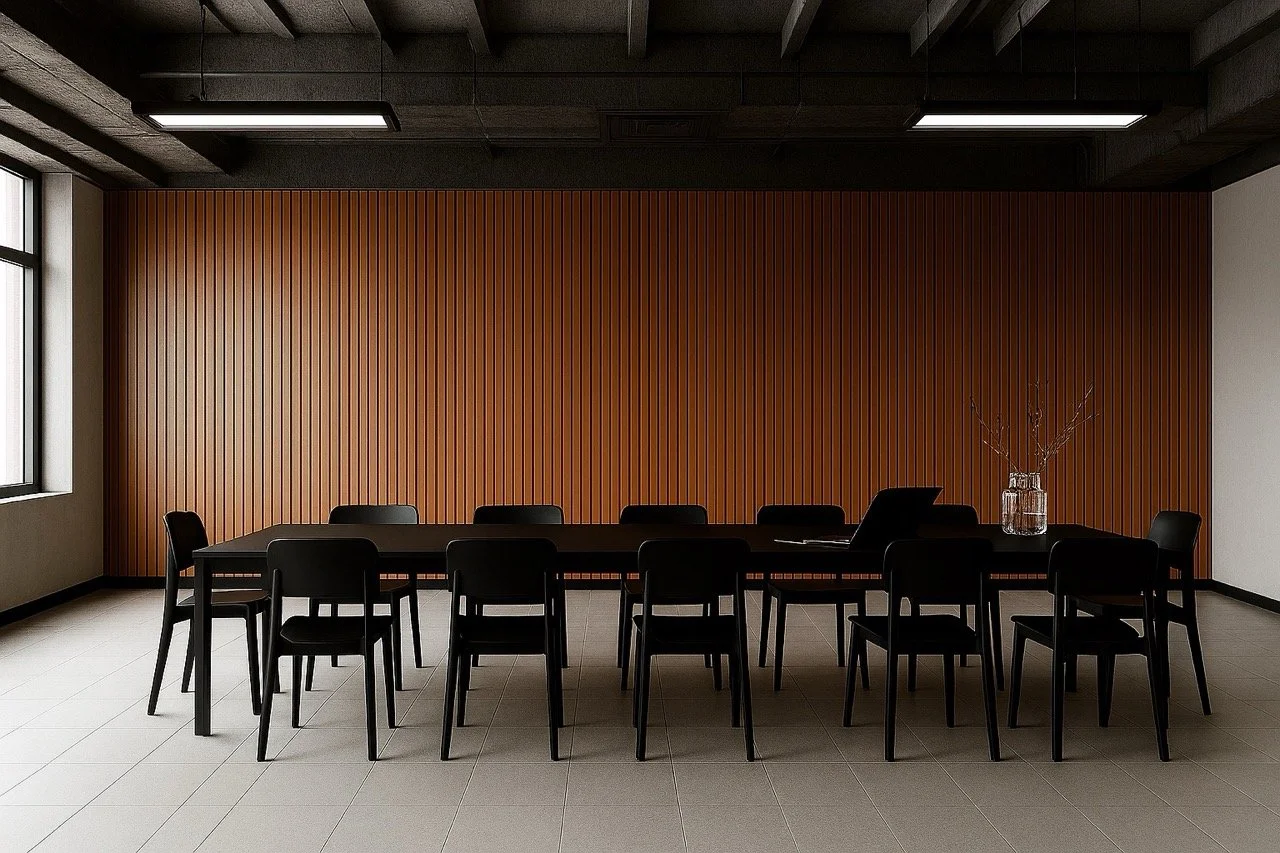

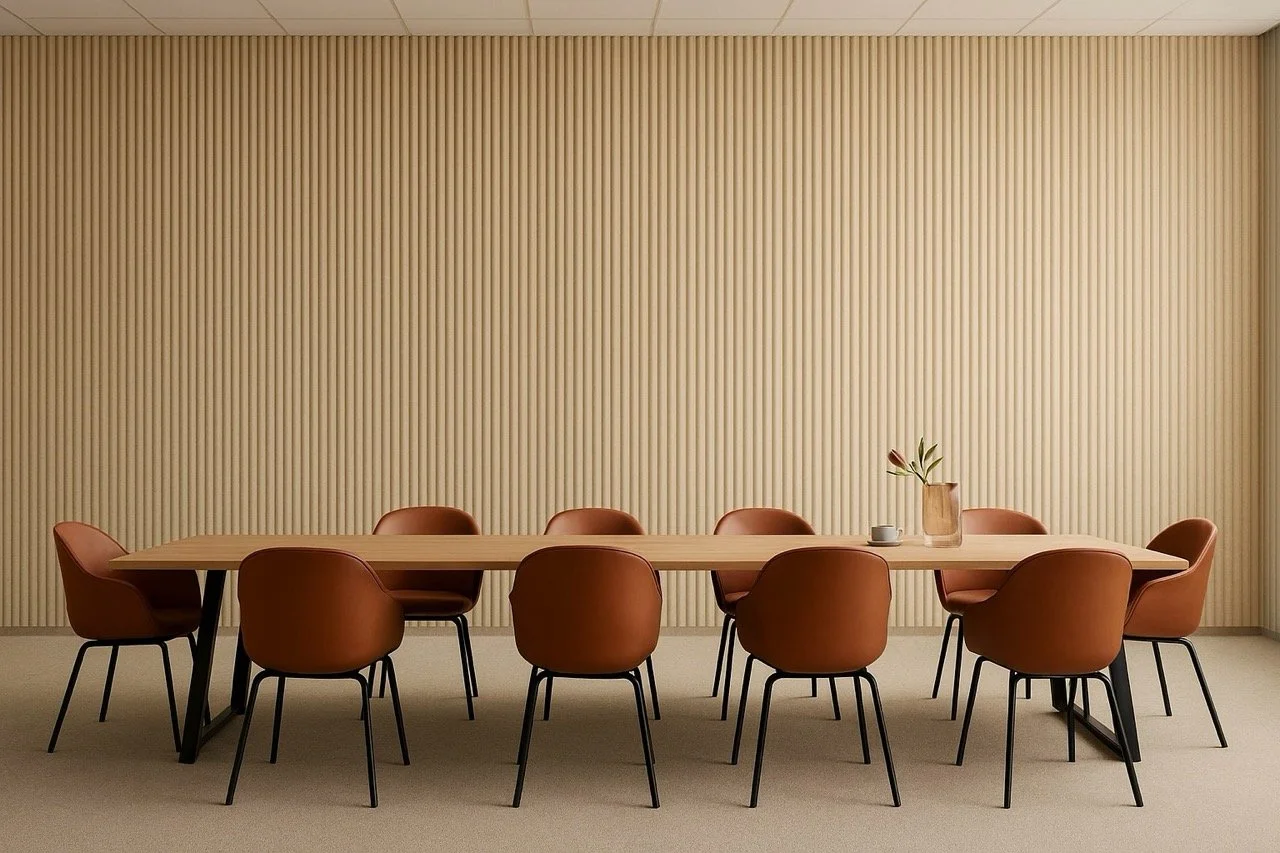

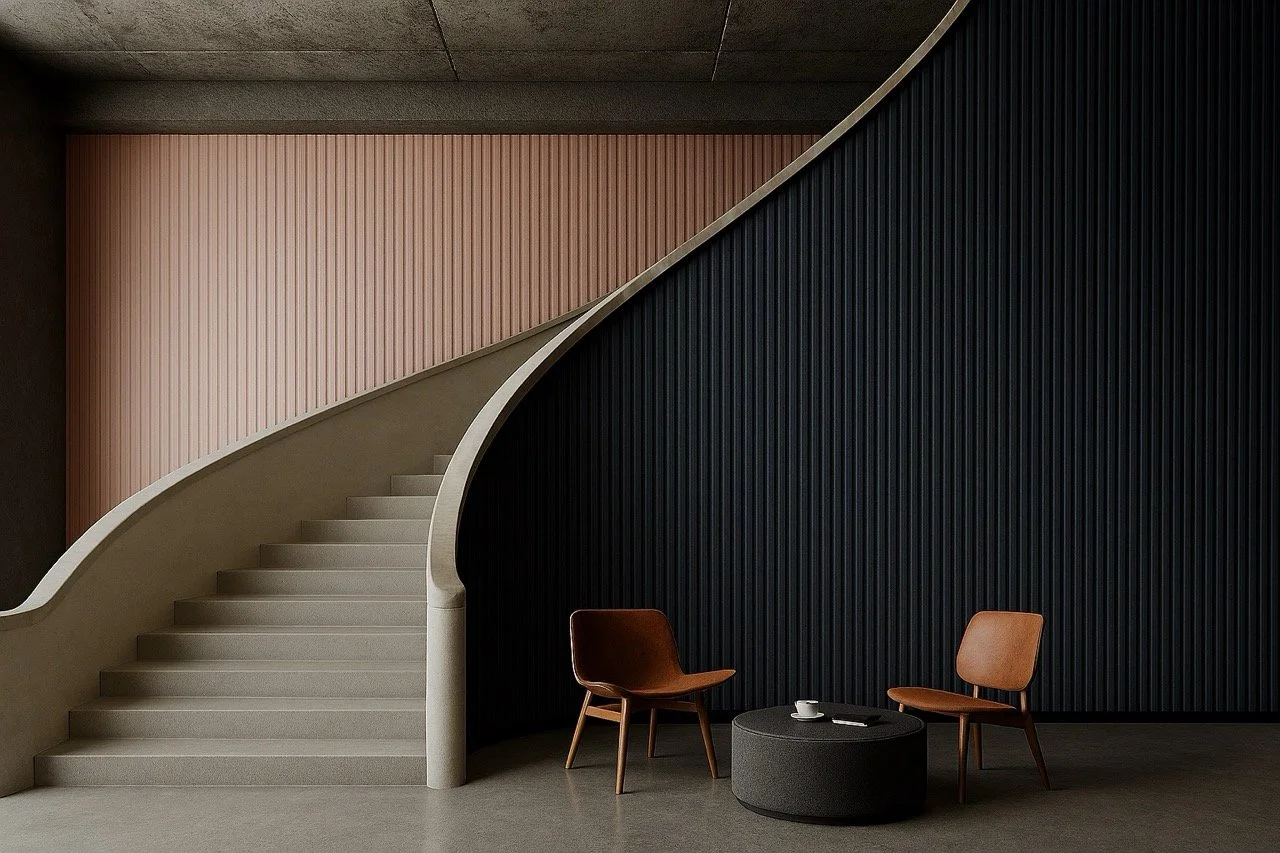

This panel seamlessly marries acoustic functionality with aesthetic appeal, making it a valuable addition to offices, as well as vibrant public venues like eateries and lodgings.
Datasheet - Product Datasheet
Materials - 9, 12 & 24mm
Colours - 60+ variants
Designs - 4 variants
Get a Quote
Technical Data
Composition:
Recycled PET Fibre - Robust, light, no irritation, eco-friendly, washable, fade-resistant, fireproof
Dimensions:
9 or 12mm @ 2400*1200mm, 2400*820mm, 2400*1100mm, 2400*1120mm
(oversized available with MOQ)
Sustainability:
Contains a minimum of 75% recycled polyester fibre (Post-consumer, from PET bottle-flake), ensuring comparatively low embodied energy. Off-cuts and manufacturing waste are reused or recycled wherever possible. Uncontaminated panels can be recycled.
Installation:
May be bonded using a suitable wall or ceiling adhesive, fixed with screw, pinnails or standard picture hanging products. Can also be suspended with optional suspension cable kits. Full instructions and guidelines for fixing and placement are included in all orders.
Fire Rating:
EN 13501-1:2018 - Class B-s2,d0
Designs:
Our range of 4 wave designs (Wave A-2, B, C-2, and D) features a selection of distinctive undulating patterns designed to add dramatic architectural depth and fluid movement to any space. These 3D panels create striking shadow lines and visual interest by interacting with room lighting to elevate the interior aesthetic. Beyond their premium tactile finish, the unique wave profiles enhance acoustic performance by both absorbing and diffusing sound waves, providing a more balanced and natural acoustic environment across 60 vibrant colour options.
NRC:
9mm = 0.40 | + AirGap (50mm) = 0.80
12mm = 0.40
24mm = 0.75 | + (25mm) = 0.85 | + (50mm) = 0.90
NRC = Noise reduction coefficient. A measure of a panel's overall sound reduction/absorption, ranging from 0=zero to 1=100% absorption
Colours & Samples
Resources
-
-
-
-
Specifying this product? > Copy the NBS clause below directly into your project documents. For custom cuts or prints, please contact info@gbacoustics.co.uk.
Manufacturer: GB Acoustics Ltd (www.gbacoustics.co.uk / 07488 446 696)
Product Reference: GB PetFelt Acoustic Wave Panel
Material: 100% PET Polyester fiber (minimum 75% recycled plastic bottle content)
Thickness: [Select: 9mm / 12mm]
Fire Performance (EN 13501-1:2018): Class B - s2, d0
Acoustic Performance: Up to Class A sound absorption (system dependent)
Design / Pattern: [Insert pattern choice from Wave A-2, B, C-2, and D]
Colour / Finish: [Insert colour choice from GB Acoustics 60+ Colour Range, or insert 'Custom Print']
Dimensions (H x W): [Insert Dimensions, e.g., 2400mm x 1200mm / Custom cut]
Installation: Mechanically fixed or adhered directly to the substrate using manufacturer-approved grab adhesive. Ensure substrate is clean, dry, and dust-free prior to application.
Frequently Asked Questions
About Wave Acoustic Wall Panels
-
A: Aesthetically, the 3D texture creates incredible shadow lines and visual depth. Acoustically, the undulating surface helps to diffuse (scatter) sound waves as well as absorb them. This combination of absorption and diffusion makes a room sound more "natural" and balanced, rather than just "dead.
-
A: Minimally. Our Wave panels add texture without significant bulk. They are designed to be slimline while providing maximum surface area for absorption. This makes them ideal for corridors or meeting rooms where space is at a premium.
-
A: PetFelt is naturally stain-resistant and anti-static. For regular maintenance, the panels can be vacuumed with a soft brush attachment to remove dust from the waves. Spills can be spot-cleaned with a damp cloth and mild detergent.
-
A: Yes. While our standard sheets come in 2440mm x 1220mm, PetFelt is a versatile material that can be directly produced or CNC cut to virtually any bespoke shape, logo, or geometric design. Because the material is solid colour throughout (not a veneer), the cut edges are clean and do not require edging or framing.
-
PetFelt panels are lightweight and can be installed easily using a high-grab contact adhesive (such as our TensorGrip spray) or off-the-shelf construction adhesive. for a adhesive-free installation, they can also be mechanically fixed using screws, invisible fixings, pin-nails or a Z-clip system. The material is robust enough to pin into, making it perfect for office noticeboards.
-
A: Safety is our priority. Our PetFelt material is tested to EN13501-1 Class B-s1/2,d0. This makes them suitable for use in the majority of commercial, educational, and public environments where fire safety compliance is mandatory. They are self-extinguishing and do not produce toxic smoke or flaming droplets.
