Polyester Acoustic Panels

Polyester Acoustic Panels

0.00

Wall & Ceiling Panels for studios, home theatres, school classrooms, gymnasiums, halls and hospitality.

Add To Cart

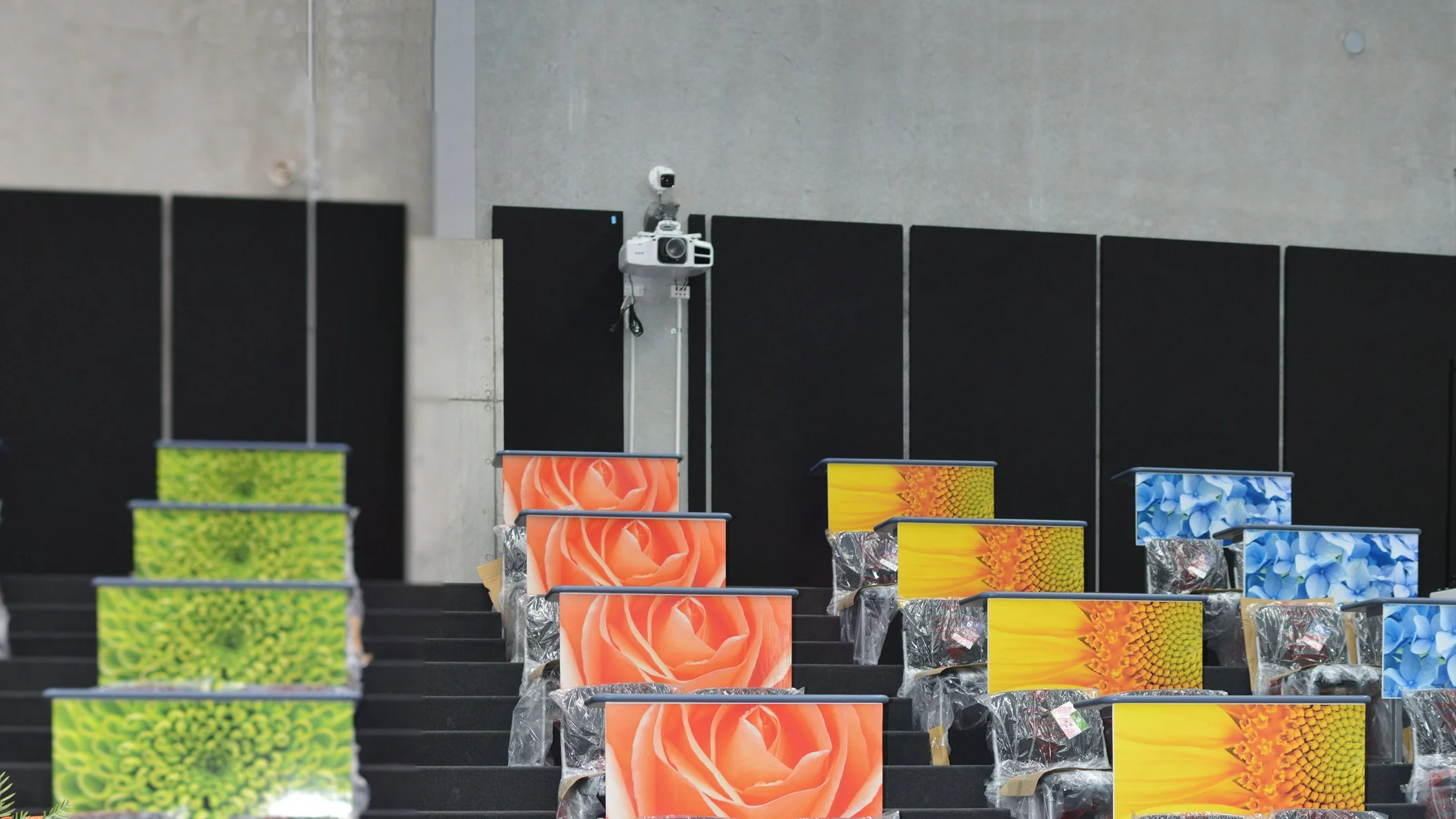

School Classrooms & Commercial:

(using 50mm thick suspended ceiling panels) - approximately 36% of the total ceiling area for most school classrooms and commercial applications including restaurants, cafes, bars, offices and meeting rooms.

Studio:

placement is the key to successful recording and mixing studio acoustics. The two key areas are early reflection damping (primary sonic reflections) and corner bass frequency trapping. Please see diagram below.

Home Theatre:

similar requirements and placement to studios. The main difference is the side wall panel placement which is typically further back in the room mid way between the speakers and listening position.

Fixing:

May be glued using contact adhesive or fixed with standard picture hanging products. Full instructions and guidelines for fixing and placement are included in all packs.

Thickness:

Ceiling & wall panels are 50mm in thickness

Manufacture:

Bonded plastic fibre @ 35 Kgs per M3 density. Light, no irritation, eco friendly, washable, fade resistant, fireproof & 100% UK building regulation compliant.

Sizes:

Ceiling & wall panels are w:580mm h:1150mm with square edges.

Weight:

25mm ceiling and wall panels - 0.5kg.
50mm ceiling and wall panels - 1.0kg.

Colours:

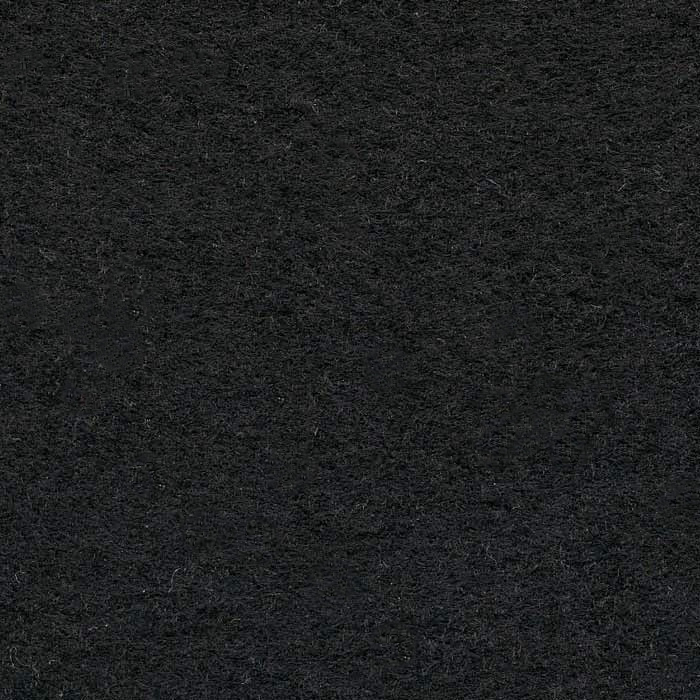

Black & White, White & Black as shown above.

Fire Rating:

A Rated - Non flamable

NRC:

25mm = 0.70 | 50mm = 0.90
(NRC = Noise reduction coeficient. A measure of a panel's overall sound reduction/absorption ranging from 0=zero to 1=100% absorption)

To View a detailed chart of NRC values for all GB Acoustics products please download this PDF document
